Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L

Jiangsu TOM Intelligent Equipment Co., Ltd.,
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L from wholesalers

    Buy cheap Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L from wholesalers
    • Buy cheap Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L from wholesalers

    Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L

    Ask Lasest Price
    Brand Name : TOM
    Model Number : XG-1
    Certification : CE, ISO,CO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L

    XG-1 Semi-Automatic Cap Capping Machine (Put Cap On The Drum By Manual)

    Product advantages

    This machine is special designed for middle and wide mouth barrel scraping and capping. It can be widely used in 10-30L round drum automatic loading cap and capping in coating, petrochemical and other industries.


    Technical Parameter:

    NO.ItemParameter
    Outside dimension(L×W×H)500*1700*900MM
    Machine’s weight600KG
    Equipped powerAC220V±10% 50HZ
    Equipped air source0.6MPa clean and dry air source
    Air consumption40L/min
    Power supply3kw
    Capacity8-10drums/minute
    Suitable cap5-25L wide mouth cap
    Packing range5-25L

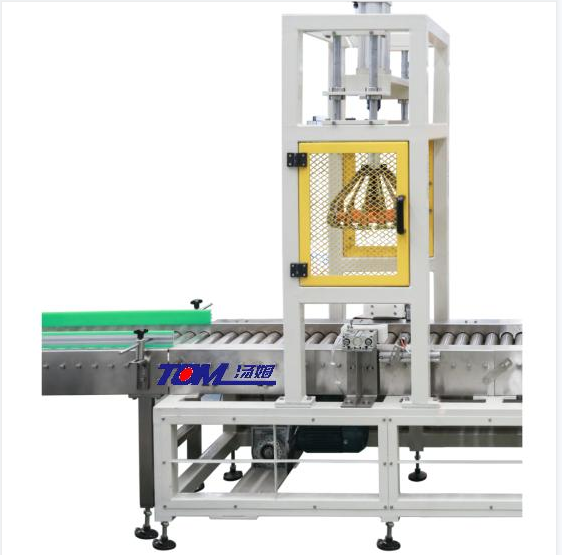

    Machine's picture:

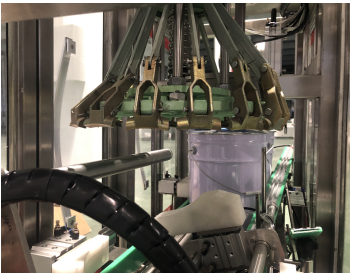

    Suitable Drum:

    Equipment control technical point:

    1. Put cap on the drum by manual

    2.The cap pressing device uses a continuous capping machine

    3. Adopts inclined roller conveyor, and there is an exhaust device on the side.

    4. Height can be adjusted by handwheel. To adapt to different barrel types;

    5. The conveying process running stable before capping and make sure no splashing.


    Electrical parts:
    The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.


    Packaging & Shipping:

    1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

    Company Overview--Jiangsu Tom Group

    Tom "The Little White House"

    Jiangsu Tom Group factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.

    Company covers an area of 150 muOffice building
    New factory processing centerOld factory processing center
    Assembly workshopAfter-sales service big data service center
    Large meeting roomReception room
    Packaging material display areaModel workshop
