    Fully Automatic PLC Controlled Powder Packing Machine For Bottles

    Ask Lasest Price
    Brand Name : TOM
    Model Number : FJ-1BP
    Certification : CE, ISO,CO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Fully Automatic PLC Controlled Powder Packing Machine For Bottles

    FJ-1BP Fully Automatic PLC Controlled powder packing machine for Bottles
    Major characteristics

    This type of packing machine is automatic controlled by PLC. Movement reliability, servo motor, touches screen, easy operation, and adjustable speeds. This type of machine is suited for the ration packaging of small particulates, petty powder, and super-mini-power.

    The parts, which come into contact with filling material, are made of stainless steel conforming to GMP standard.

    Technical parameters

    No.ItemsPerformance
    01Power supply380V±10%or design according client requirement
    02Power3kw
    03Air source0.6Mpa clean and stable compressed air
    04bottledesign according customer's bottle and cap
    05filling head1
    06Filling productPowder, granular
    07Filling range100g-500g
    08Filling accuracy± 5g
    9Production capacity500 bottles per hour
    10Machine weightabout 1200Kg
    11Machine dimension (L×W×H)2000mm (L)*800mm (W)*2100mm (H)

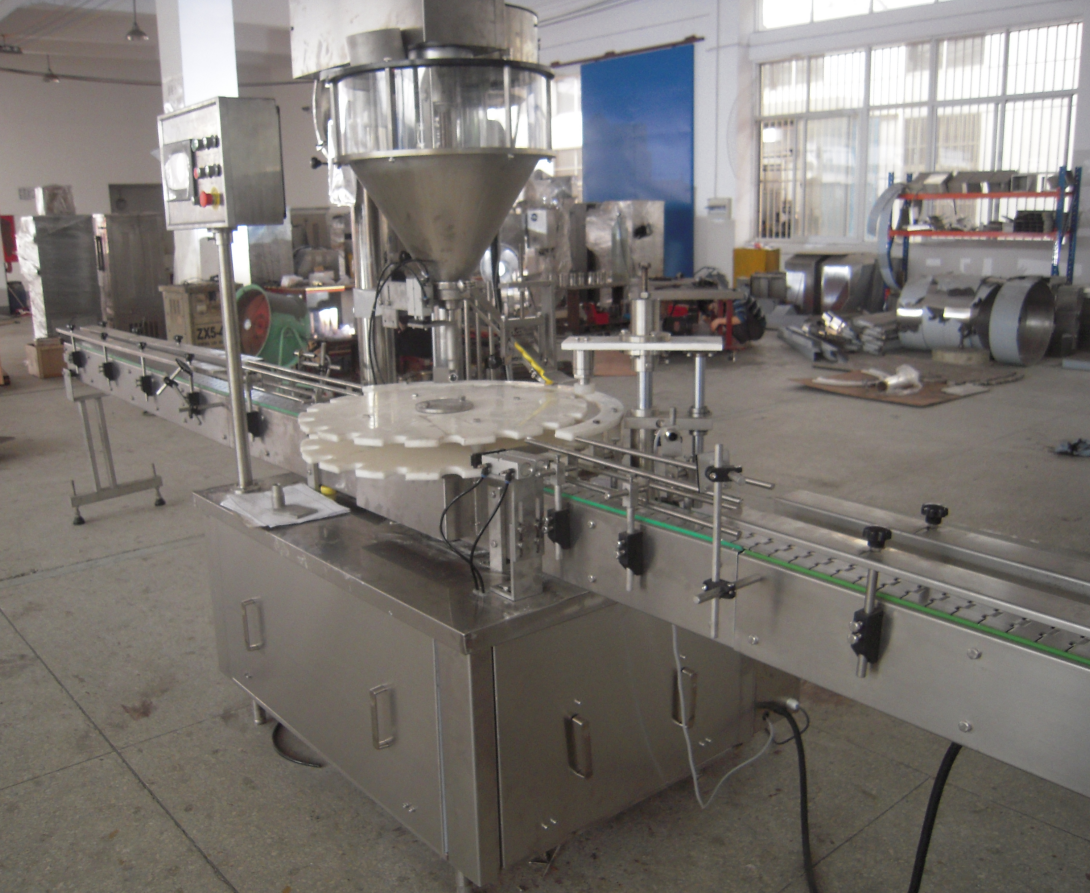

    Machine's picture:

    The main components of this machine are all international famous brands. The human-machine interface and microcomputer controller (PLC) adopt the Japanese Panasonic brand. The operation is simple and the operation is reliable. The servo control system adopts Taiwan TECO and has been used by the company for nearly 10 years. Has considerable experience, stable quality, wide application environment and low maintenance rate. The main power inverter adopts the French Schneider brand


    Electrical parts:
    The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

    Packaging & Shipping:

    1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

    Company Overview--Jiangsu Tom Group

    Tom "The Little White House"

    Jiangsu Tom Group factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
